DIN6798 A/J/V Toothed Serrated Lock Washer

DIN6798 A/J/V Toothed Serrated Lock Washer

DIN6798 A/J/V Toothed Serrated Lock Washer - Image 2

DIN6798 A/J/V Toothed Serrated Lock Washer - Image 3

DIN6798 A/J/V Toothed Serrated Lock Washer - Image 4

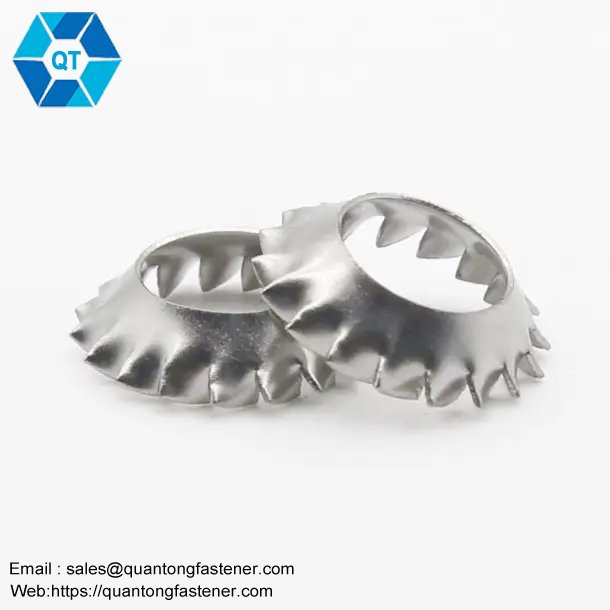

DIN6798 A/J/V Toothed Serrated Lock Washer - Image 5

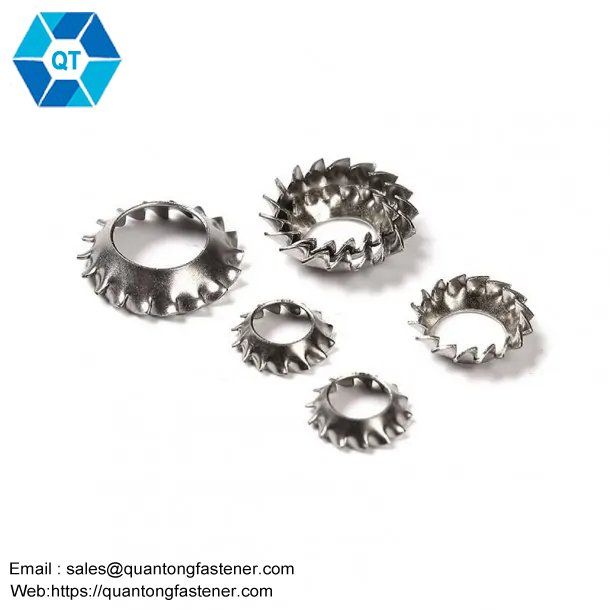

DIN6798 A/J/V Toothed Serrated Lock Washer - Image 6

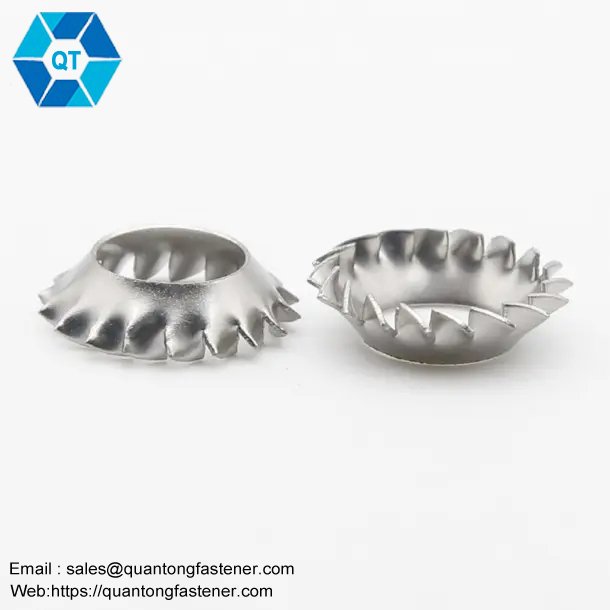

DIN6798 A/J/V Toothed Serrated Lock Washer - Image 7

DIN6798 A/J/V Toothed Serrated Lock Washer - Image 8

EXW PRICE : 720USD-910USD/TON
Min.Order Quantity:2TONS
PACKAGING:BAG/BOX WITH PALLET
PORT:TIANJIN/QINGDAO/SHANGHAI/NINGBO
DELIVERY:5-30DAYS ON QTY
PAYMENT:T/T/LC
Supply Ability:600 TON PER MONTH

FOB Price:US $0.5 – 9,999 / Piece
Min.Order Quantity:100 Piece/Pieces
Supply Ability:10000 Piece/Pieces per Month

Description

Description

Product Description:

Product Name	Lock Washer DIN6798
Material	Stainless steel:A2-70,A2-80,A4-70,A4-80
Color	Polish, Passication
Standard	DIN,ASME,ASNI,ISO
Grade	4.8 6.8 8.8 10.9 12.9,SUS201, SUS304, SUS316, A2-70, A2-80, A4-80
Finished	Polish, Passication
Thread	coarse, fine
Used	building industry machinery

Parameter Of Product:

DIN6798A

Specification		1.7	2.2	2.7	3.2	3.7	4.3	5.3	6.4	7.4	8.4
d	min=nominal	1.7	2.2	2.7	3.2	3.7	4.3	5.3	6.4	7.4	8.4
d	maximum value	1.84	2.34	2.84	3.38	3.88	4.48	5.48	6.62	7.62	8.62
d_c	max = nominal	3.6	4.5	5.5	6	7	8	10	11	12.5	15
d_c	minimum	3.3	4.2	5.2	5.7	6.64	7.64	9.64	10.57	12.07	14.57
t		0.3	0.3	0.4	0.4	0.5	0.5	0.6	0.7	0.8	0.8
number of teeth	minimum	9	9	9	9	10	11	11	12	14	14
thousand pieceskg		0.02	0.03	0.045	0.06	0.11	0.14	0.28	0.36	0.5	0.8
Applicable thread		M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M7	M8

Specification		10.5	13	15	17	19	21	23	25	28	31
d	min=nominal	10.5	13	15	17	19	21	23	25	28	31
d	maximum value	10.77	13.27	15.27	17.27	19.33	21.33	23.33	25.33	28.33	31.39
d_c	max = nominal	18	20.5	24	26	30	33	36	38	44	48
d_c	minimum	17.57	19.98	23.48	25.48	29.48	32.38	35.38	37.38	43.38	47.38
t		0.9	1	1	1.2	1.4	1.4	1.5	1.5	1.6	1.6
number of teeth	minimum	16	16	18	18	18	20	20	20	22	22
thousand pieceskg		1.25	1.6	2.3	2.9	5	6	7.5	8	12	14
Applicable thread		M10	M12	M14	M16	M18	M20	M22	M24	M27	M30

DIN6798J

Specification		1.7	2.2	2.7	3.2	3.7	4.3	5.3	6.4	7.4	8.4
d	min=nominal	1.7	2.2	2.7	3.2	3.7	4.3	5.3	6.4	7.4	8.4
d	maximum value	1.84	2.34	2.84	3.38	3.88	4.48	5.48	6.62	7.62	8.62
d_c	max = nominal	3.6	4.5	5.5	6	7	8	10	11	12.5	15
d_c	minimum	3.3	4.2	5.2	5.7	6.64	7.64	9.64	10.57	12.07	14.57
number of teeth	minimum	7	7	7	7	8	8	8	9	10	10
t		0.3	0.3	0.4	0.4	0.5	0.5	0.6	0.7	0.8	0.8
thousand pieces kg		0.02	0.03	0.045	0.06	0.11	0.14	0.28	0.36	0.5	0.8
Applicable thread		M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M7	M8

Specification		10.5	13	15	17	19	21	23	25	28	31
d	min=nominal	10.5	13	15	17	19	21	23	25	28	31
d	maximum value	10.77	13.27	15.27	17.27	19.33	21.33	23.33	25.33	28.33	31.39
d_c	max = nominal	18	20.5	24	26	30	33	36	38	44	48
d_c	minimum	17.57	19.98	23.48	25.48	29.48	32.38	35.38	37.38	43.38	47.38
number of teeth	minimum	12	12	14	14	14	16	16	16	18	18
t		0.9	1	1	1.2	1.4	1.4	1.5	1.5	1.6	1.6
thousand pieces kg		1.25	1.6	2.3	2.9	5	6	7.5	8	12	14
Applicable thread		M10	M12	M14	M16	M18	M20	M22	M24	M27	M30

DIN6798V

Nominal diameter		2.2	2.7	3.2	3.7	4.3	5.3	6.4	8.4	10.5	13	15	17
d		2.2	2.7	3.2	3.7	4.3	5.3	6.4	8.4	10.5	13	15	17
d	min=nominal	2.2	2.7	3.2	3.7	4.3	5.3	6.4	8.4	10.5	13	15	17
d	maximum value	2.34	2.84	3.38	3.88	4.48	5.48	6.62	8.62	10.77	13.27	15.27	17.27
d_c		4.2	5.1	6	7	8	9.8	11.8	15.3	19	23	26.2	30.2
h		0.2	0.2	0.2	0.25	0.25	0.3	0.4	0.4	0.5	0.5	0.6	0.6
number of teeth	minimum	10	10	12	12	14	14	16	18	20	26	28	30
thousand pieces kg		0.025	0.03	0.04	0.075	0.1	0.2	0.3	0.5	1	1.5	1.9	2.3
Applicable thread		M2	M2.5	M3	M3.5	M4	M5	M6	M8	M10	M12	M14	M16

OUR PACKAGE:

1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
