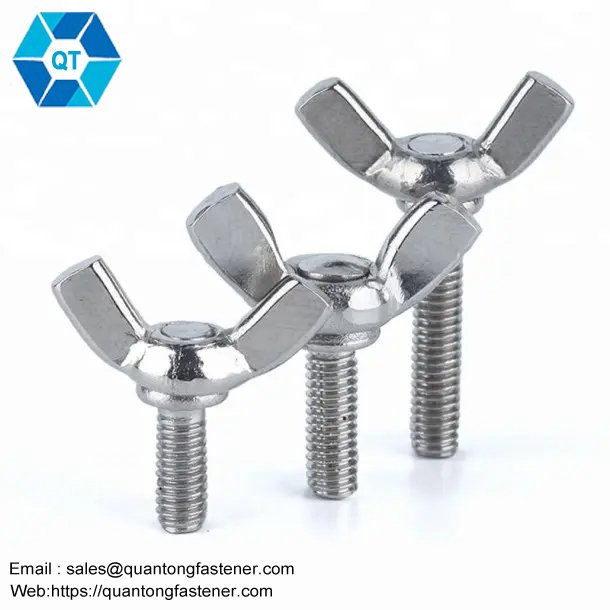

DIN316 Carbon Steel Stainless Steel Butterfly Bolt Wing Bolt Thumb Wing Screw
EXW PRICE : 720USD-910USD/TON
Min.Order Quantity:2TONS
PACKAGING:BAG/BOX WITH PALLET
PORT:TIANJIN/QINGDAO/SHANGHAI/NINGBO
DELIVERY:5-30DAYS ON QTY
PAYMENT:T/T/LC
Supply Ability:600 TON PER MONTH
- FOB Price:US $0.5 – 9,999 / Piece
- Min.Order Quantity:100 Piece/Pieces
- Supply Ability:10000 Piece/Pieces per Month
Description
Product Description:
|
Product Name
|
Wing bolts DIN316
|
||
|
Size
|
M6-M64
|
||
|
Material
|
Carbon Steel, Stainless Steel, Brass, etc
|
||
|
Surface Treatment
|
Plain, black, zinc plated/according to your requirement
|
||
|
Standard
|
DIN GB ISO JIS BA ANSI
|
||
|
Grade
|
SUS201, SUS304, SUS316, A2-70, A2-80, A4-80, 4.8 6.8 8.8 10.9 12.9
|
||
|
Quality Policy
|
All the parts manufactured 100% inspection from OQC before shipping.
|
||
|
Thread
|
Coarse, fine
|
||
|
Used
|
Building industry machinery,etc
|
||
|
Non-standards
|
OEM is available, according to drawing or samples
|
||
Product advantages:
- Precision Machining
☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.
2.High-quality Metal material
☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.
3. Cost-effective
☆ The use of high-qualityMetal material, after precision processing and forming, greatly improves the user experience.
Parameter Of Product:
| Thread size | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | |
| d | ||||||||||
| P | pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| dk | Maximum | 8 | 11 | 13 | 16 | 20 | 23 | 29 | 35 | 44 |
| minimum value | 6 | 8 | 10 | 13 | 17 | 20 | 26 | 32 | 41 | |
| d3 | Maximum | 7 | 9 | 11 | 12.5 | 16.5 | 19.5 | 23 | 29 | 37.5 |
| minimum value | 5.5 | 7.5 | 9 | 10.5 | 14.5 | 17.5 | 21 | 27 | 35 | |
| n | Maximum | 20 | 26 | 33 | 39 | 51 | 65 | 73 | 90 | 110 |
| minimum value | 18 | 24 | 30 | 36 | 48 | 62 | 70 | 86 | 106 | |
| h1 | Maximum | 1.9 | 2.3 | 2.3 | 2.8 | 4.4 | 4.9 | 6.4 | 6.9 | 9.4 |
| minimum value | 1.1 | 1.5 | 1.5 | 2 | 3.6 | 4.1 | 5.6 | 6.1 | 8.6 | |
| h2 | Maximum | 2.3 | 2.8 | 3.3 | 4.4 | 5.4 | 6.4 | 7.5 | 8 | 10.5 |
| minimum value | 1.7 | 2.3 | 2.7 | 3.6 | 4.6 | 5.6 | 6.5 | 7 | 9.5 | |
| H | Maximum | 10.5 | 13 | 17 | 20 | 25 | 33.5 | 37.5 | 46.5 | 56.5 |
| minimum value | 8.5 | 11 | 15 | 18 | 23 | 31 | 35 | 44 | 53.5 | |
| k | Maximum | 4.6 | 6.5 | 8 | 10 | 12 | 14 | 17 | 21 | 25 |
| minimum value | 3.2 | 4 | 5 | 6.5 | 8 | 10 | 13 | 16 | 20 | |
OUR PACKAGE:
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
