DIN 929 Carbon Steel_Stainless Steel Hexagon Weld Nuts
Min.Order Quantity:1000pcs
PACKAGING:BAG/BOX WITH PALLET
PORT:TIANJIN/QINGDAO/SHANGHAI/NINGBO
DELIVERY:5-30DAYS ON QTY
PAYMENT:T/T/LC
Supply Ability:500 TON PER MONTH
- FOB Price:US $0.5 – 9,999 / Piece
- Min.Order Quantity:100 Piece/Pieces
- Supply Ability:10000 Piece/Pieces per Month
Description
| Product name | Hexagon Weld Nuts |
| Size | M3-16 |
| Material | Steel/Stainless Steel |
| Surface treatment | Plain |
| Standard | DIN/ISO |
| Certificate | ISO 9001 |
| Sample | Free Samples |
Usage:

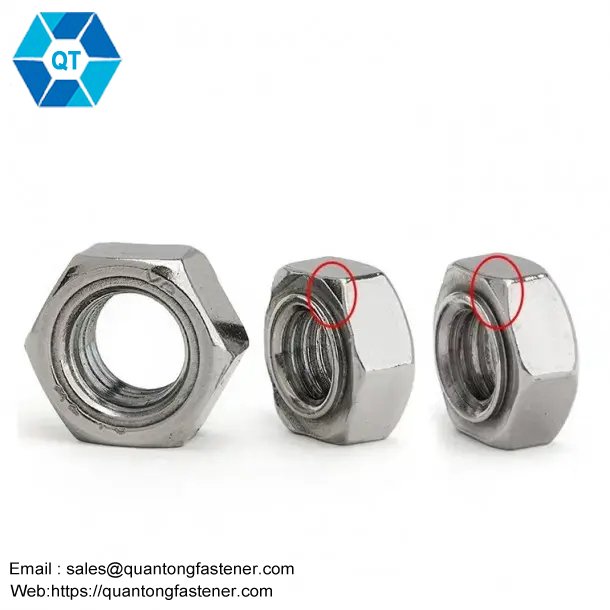

Hex welded nuts are hexagon type nuts for welding. The shape is hexagonal, one side is the same as the hexagon nut, and the other side has three solder joints and a boss. Three solder joints are used for welding, and the boss is used for positioning.
Hex welded nuts are used for connection.Use a welding machine to connect the hexagonal welding nut to the mother body, and then use screws to fix the required object.Generally used with spot welding machine, good welding performance and fast efficiency.This nut is widely used in automotive seats, sheet metal cabinets, molds, ships, railways and other industries.
Hex welding nut solves the problem that ordinary nut cannot fix the mother body.There are three solder joints and a circular boss on one side of the nut.The boss is used for positioning, and the solder joint is used for welding.First punch out a positioning hole on the mother body, position the boss of the nut above the hole, and then use a spot welder to weld the nut to the mother body.The welding principle is to melt the three welding points of the nut at a high temperature, so that the welding points are melted on the mother body to achieve the welding effect.This connection is a non-removable connection.
Product advantages:
The projection welding has accurate positioning and consistent size, and the strength of each point is uniform and reliable. The projection welding can ensure that the thread is not annealed and does not reduce the accuracy. The appearance of the weldment is beautiful and the productivity is high. There is no harm to the human body from CO2 gas and skin smoke, which can improve the working environment.
Weakness edit
Due to the incorrect selection of process parameters, the welding of the projection welding nut is not firm, and the semi-finished product is prone to fall off during transportation or transfer.
Parameter Of Product:
DIN 929 STANDARD
OUR PACKAGE:
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
